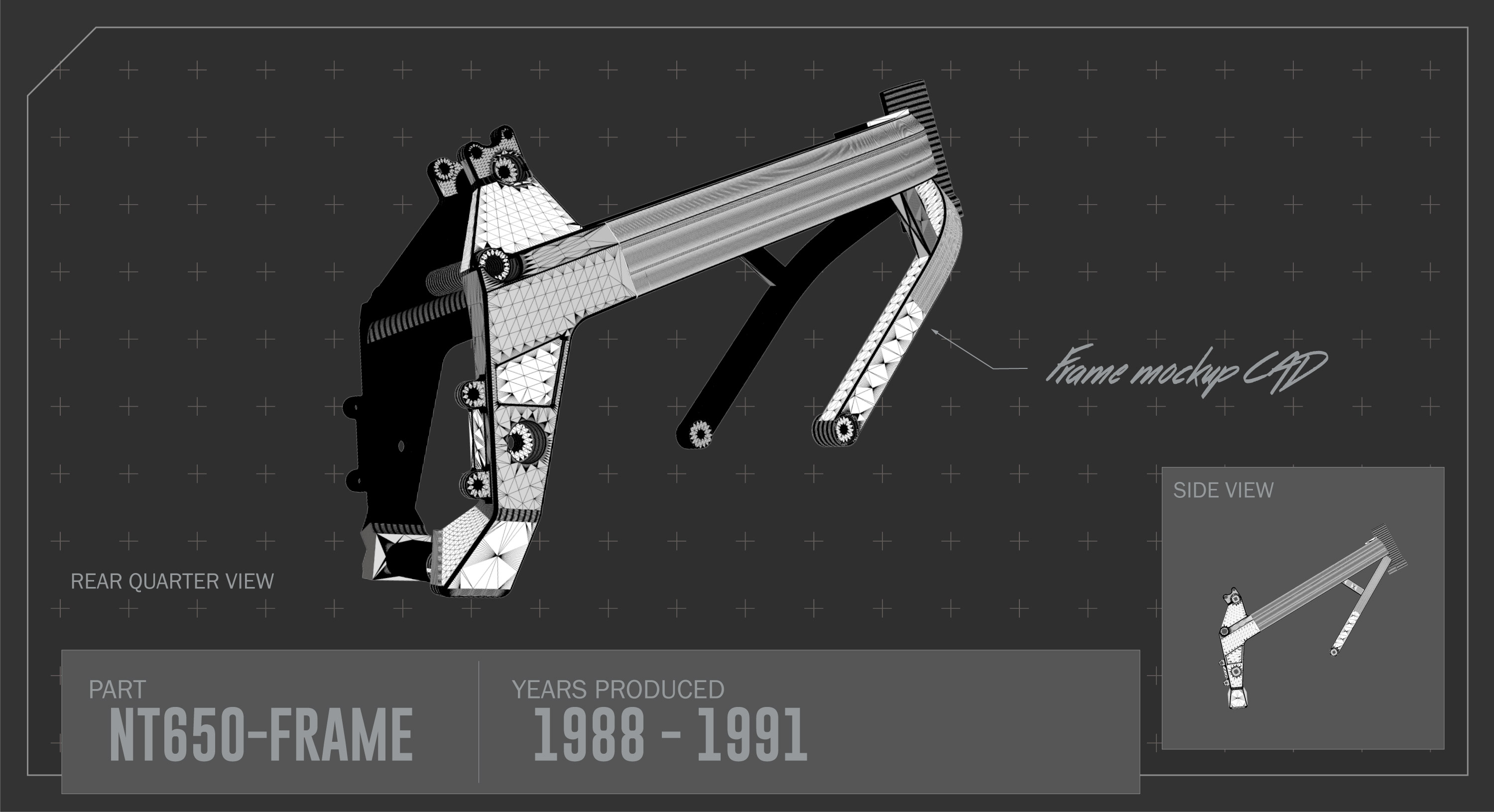

Hawk FRAME cad
CAD is for reference only, all dimensions are approximate.

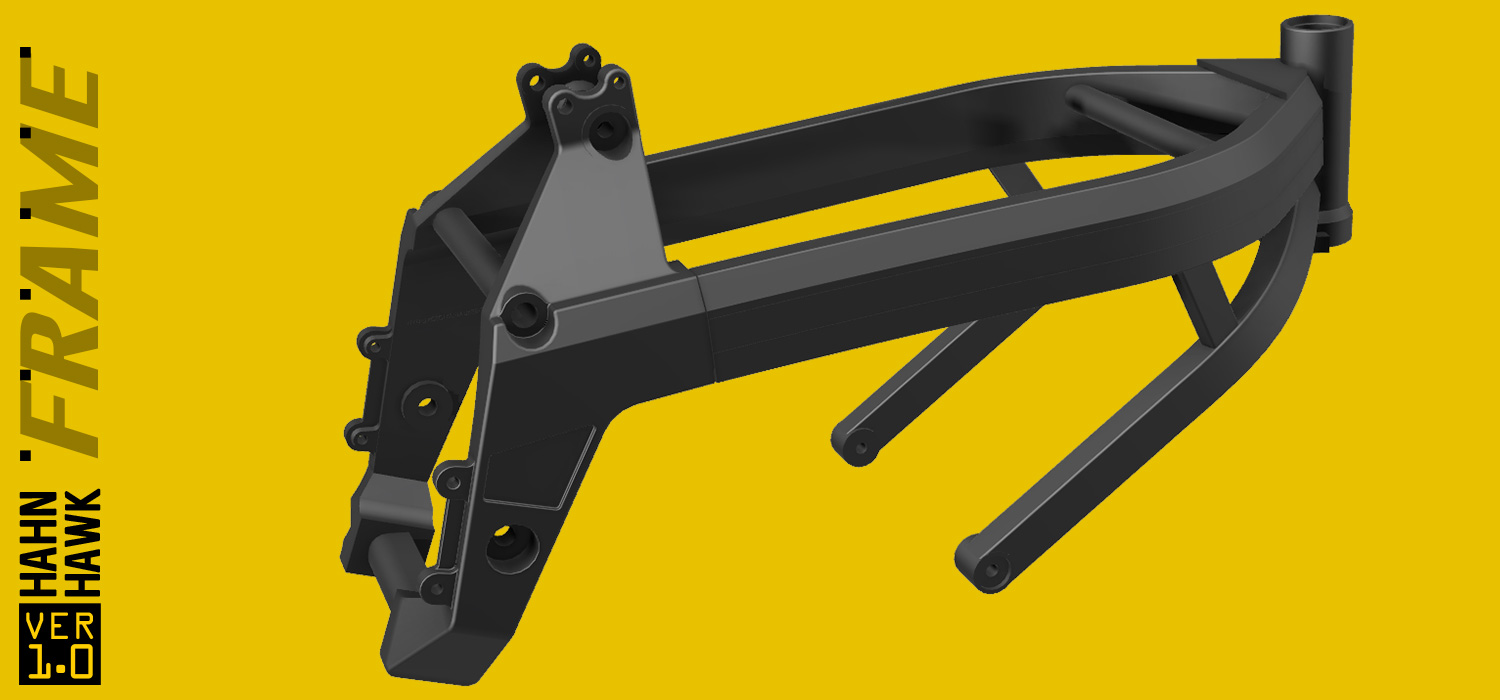

Download HAWK GT NT650 frame for FREE
HondaNT650_FRAME_MotoMilwaukee_VER_1.step
Hawk ENGINE PLACE HOLDER cad
CAD is for reference only, all dimensions are approximate.

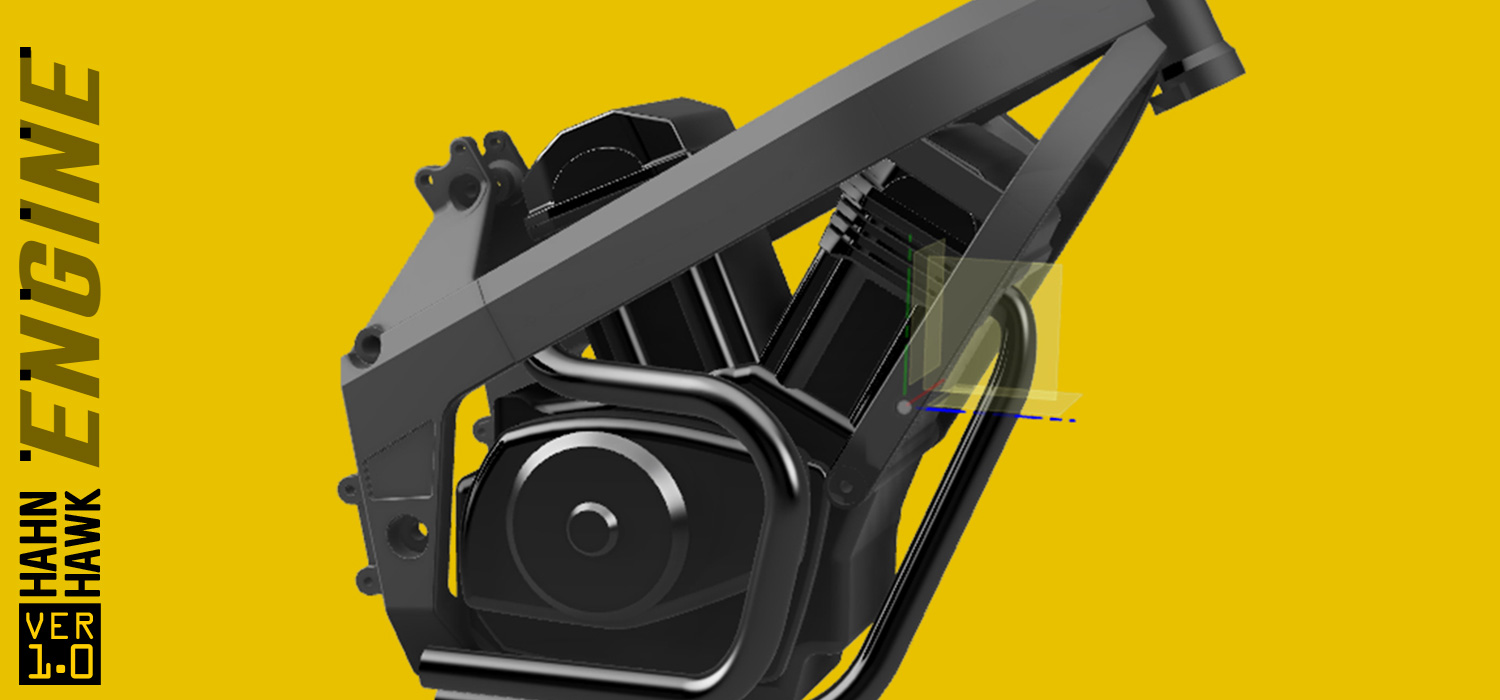

Download HAWK GT NT650 engine place holder for FREE
HondaNT650_ENGINE_MotoMilwaukee_VER_1.step
Concept Sketch Design Development
Full vehicle as well as component design development
Executing design in 3D
Clay sculpting to develp the concept form translates the concept from 2D to 3D
Concept bike build
Building the concept on an '89 Honda Hawk GT chassis

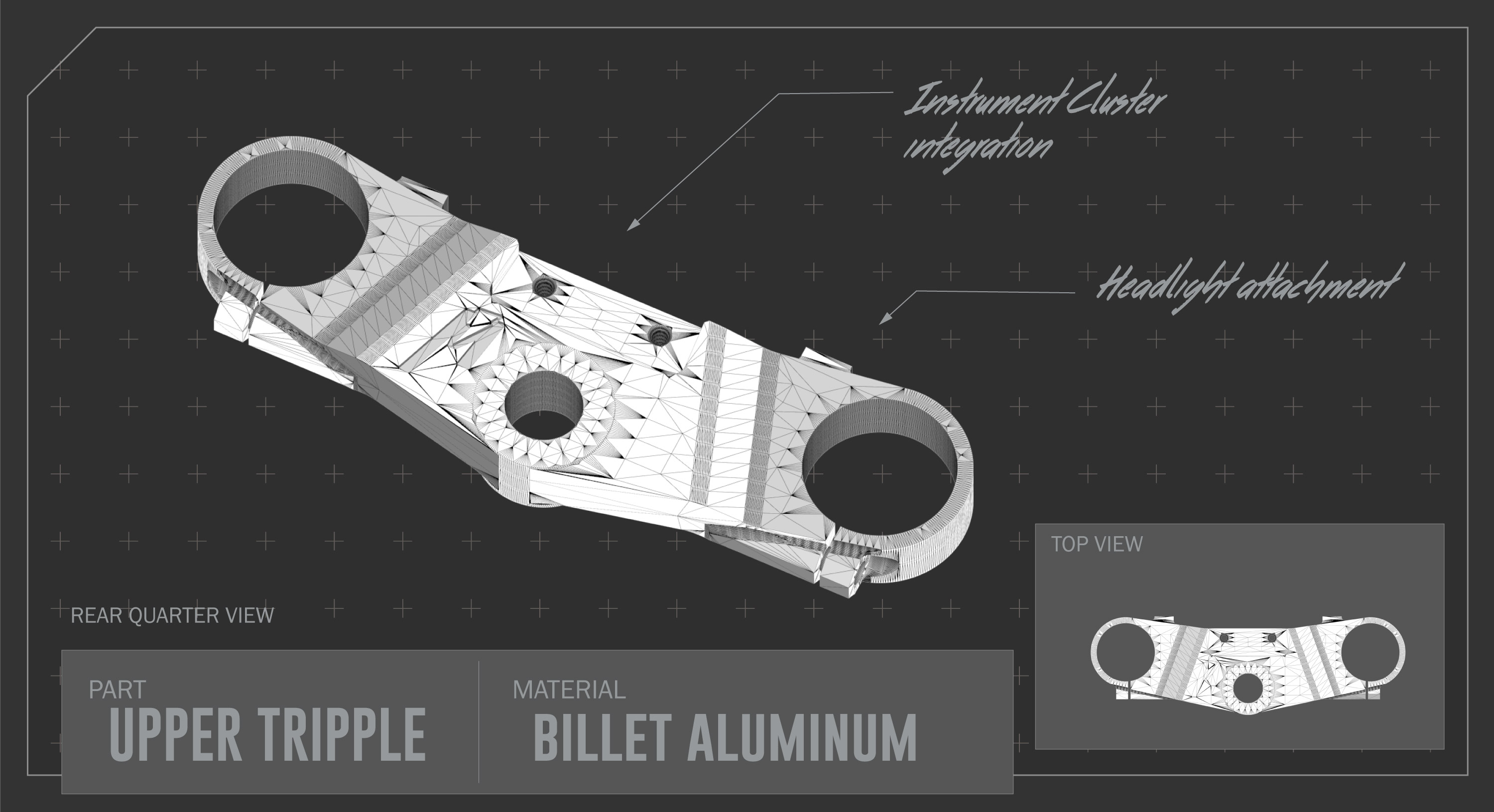

Digital 3D design
Constructing the design in CAD allows form and mechanical development
